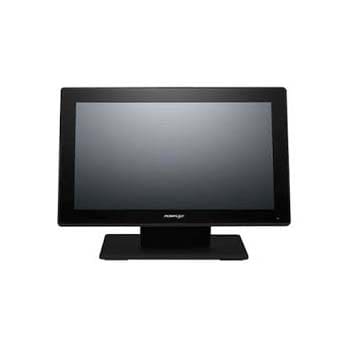

POSIFLEX XT-3817 Fanfree 17″ POS Touch Terminal Series

SKU: 75dd6dbb3c99 Category:


This product requires specialist consulting. Please CONTACT US for additional technical information and pricing. We can help you with everything from specification to installation, operation and maintenance.


• CPUIntel® Bay Trail Quad Core Celeron™ J1900 / 2.0 GHz ~ 2.42 GHz
• MemoryDDR3L 800 MHz, SO-DIMM socket x 1, max 8 GB, default 2 GB
• Storage device(s)In Australia Standard with 64 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives• Display17″ TFT LED Backlit LCD Display
• Resolution1280 x 1024
• Tilt Angle15° to 90°
• Touch PanelBezel Free: Projected Capacitive Touch supporting 10pts multi-touch
• I/O Ports4 x RS-232 Ports (3 x DB9, 1 x 10 pin RJ50) with 5V/12V Support
• 6 x USB Ports (1 x USB3.0/2.0 6 x USB2.0)
• Optional Powered USB Ports 1 x 24V & 3 x 12V on GEN 8 Base
• 1 x Proprietary USB port for side mount optional devices
• 1 x Parallel Port through service window (Optional Proprietary Cable)
• 1 x 10/100/1000Mb Ethernet Port
• 1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
• 1 x Mini-PCIe slot
• 1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
• 1 x UPS Port (Battery is optional)
• 1 x Audio2W Speaker
• OS SupportWindows 7 / POSReady 7 / WIN8.1 Embedded Retail Industry / Linux per request
• Environmental Sealing N/A
• Operating Environment0 ~ +50 °C, 20 ~ 90% RH with SSD
• 0 ~ +40 °C, 20 ~ 90% RH with HDD
• Storage Environment-20 ~ +70 °C, 10 ~ 90% RH
• Power Supply12V DC Power Adapter (80W)
• (Optional 120W when equiped with 2nd Display)
• (Optional 150W when equiped with Gen 8 Base with Powered USB I/F)
• External Dimensions (WxDxH)404.5mm x 355mm x 251mm
• Weight6.2 Kg
• Low cost Thermal Printing
• 160mm/sec. printing speed
• Drop-in Paper Loading
• Easy Maintenance for cutter, Print head and Platen
• Built-in USB & RS232 Serial Interface
• NV Memory for Bit map Data Storage
• Barcode Printing including GS1 DataBar and 2D Barcode
• LLP (Long Life Print) function to be able to extend the printer life
• Paper save function: Top Margin /Line Spacing / Font Compression
• Internal Energy Star® Power Supply
• Low power consumption: Power Save Mode / USB Power Save Mode
• Easy customization with software utility
• Printer can be positioned Horizontally or Vertically
• Available in Black & White (white special order only MOQ applies)

In today’s retail and hospitality market, POS terminal is no longer just a cold and hard business tool. It is a part of the store decoration, a part of the store image. Each curve and detail of the POS terminal should add something to the overall mood of the store, to lift the shopping experience of the customers.With a bezel free touch screen, large 17″ display, beautifully sculptured slim body, sexily curved base stand, XT-3817 looks right at home at any elegantly decorated store. And more than just good looks, XT-3817 also offers ample of performance and flexibility to satisfy the most demanding of daily POS operations.

• PC POS Touch System
• Projective Capacitive Touch screen (PCAP)
• 17″ LCD 1280 x 1024 resolution
• Spill-resistant design (IP44 capable) to prevent careless spill and provide easy cleaning for a wide range of applications
• Intel J1900 Quad Core CPU up to 2.42 GHz 2M Cache and DDR3L memory
• Fan-free design boasting quiet and anti-dust features
• Aluminium die-cast housing design for efficient cooling
• RAID 1 (Disk Mirroring) support to backup important data (Optional)
• Push-open cover to protect power switch from accidental shutdown• New Gen 7 Slim line Base (Patent pending)
• Optional Gen 8 slim base, which can have build in Power supply and Powered USB Modules
